IHI TURBO PERFORMANCE
Usage notes:
This product is intended to be used only on racing vehicles on closed courses, and not for use on roads or vehicles otherwise subject to emission control requirements. Please check legality of aftermarket products with your country, local state, county, city authorities before purchasing. In USA, this product should not be used on any vehicles that is registered or licensed for use on public roads.
This turbocharger can be used as a trustworthy heavy-duty stock replacement, or for competitions with modifications of engine and peripheral accessories.
PRODUCT FEATURES
- Precise machined aluminum forged big compressor wheel
- Turnbuckle adjustable wastegate actuator
- Bolt-on Installation
- Gaskets are excluded
- Engine and peripheral parts modifications will be needed to soup up the performance more.
- Assumed up to approximately 100PS with engine modifivation. (The output varies depending on the vehicle specifications.)
- Installation:
- BOLT-ON
- Recommendation:
- Inlet & Exhaust Upgrade
Applicable model : JB64W
P/N : F31CAC-SP005
| Turbo model | Assumed Max Power | Compressor Wheel | Turbine Wheel | ||
|---|---|---|---|---|---|
| In Dia (mm) | Ex Dia (mm) | In Dia (mm) | Ex Dia (mm) | ||
| OEM Turbo | - | 22.9 | 37 | 36 | 24 |
| IHI Turbo Performance | up to 100 ps | 28 | 40 | 36 | 24 |
Assumed MAX Power : Approximates value from the maximum air volume of the compressor

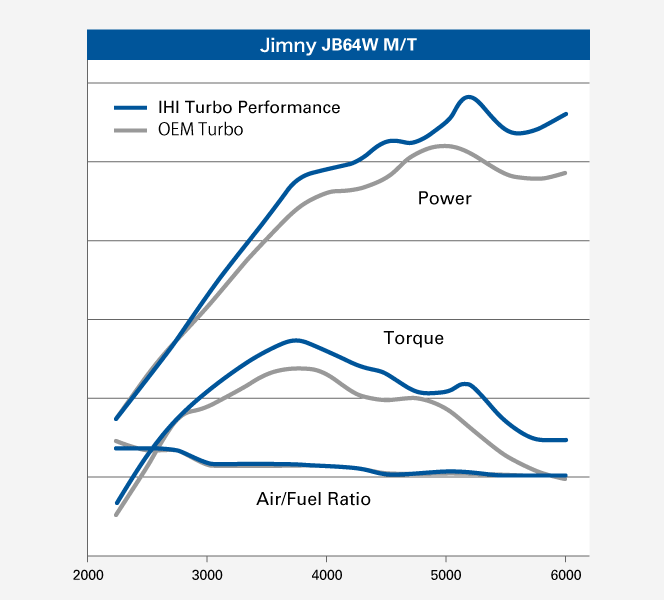

OUTPUT
MODIFICATION
Only turbocharger
Note
The results are an example. The output is not guaranteed.
ADJUSTMENT
1. Actuator
If the turbocharger unit which you select has the adjustable turn-buckle actuator, please use precise boost gauge and assure to fasten the nuts of the turn-buckle function when adjust it.2. Boost pressure control
To control boost pressure, aftermarket boost controller is necessary separately.In case of racing use:
If actual boost pressure will be increased much enough, although using boost controller, it caused by exhaust gas flow volume is exceeding wastegate capacity, and must keep back pressure with using smaller size exhaust pipes or must prepare additional wastegate function to fix it.
3. Engine control parameters
If the car is recommended to use regular gasoline originally, please feed premium gasoline when adjust ignition timing and so on to avoid engine blow caused by knock.NOTE
- When attach this turbocharger, the car might be prohibited by car regulation depends on peripheral modification spec.
- This products aiming to make engine high performance and might make low durability.
- IHI Turbo do not take any responsibility or liability for any damage or loss caused through using the product.
- Installation instruction manual for each products is not included the products. Installation of the product should be performed by a person with appropriate qualifications and knowledge with follow the method described in the vehicle's service manual.
- The information posted on this web page is subject to change without notice.
