IHI Gas Turbine Power Generation Systems

LM6000 Series

IHI High-end Model to Meet a Variety of Needs

As gas turbines derived from the CF6-80(*) model for jet engines developed by GE with high reliability and best-in-class power generation efficiencies, the LM6000 Series models continue to be some of the best-selling gas turbines in the world.
More than 1,000 LM6000 gas turbines has been manufactured by GE, the number of LM6000 has being increased in recent years.
*The CF6-80C2 has high reliability rates of 99.97% through 76.5 million hours of operation as an aircraft engine.



LM6000 Series

Download



Product Features

Top-Class power generation efficiencies in the world
High reliability founded on abundant experiences in the field
Capability to start up and shut down gas turbine at rapid speed with aircraft engine technology
Dual-Fuel : Capability to use both gas fuels and liquid fuels
Capability to prepare and deliver gas turbine in short time
Availability of burners with low NOx emissions for selection
Light weight, compact size, and ease of maintenance
Support for SPRINTTM (Output Boost Kit)

Introduction of the SPRINT™ (Spray Inter-cooled Turbine) SYSTEM

The LM6000 gas turbines are controlled by using various parameters like the rotational speed, temperature, pressure, and other parameters. For example, compressor outlet air temperature is used as one of those parameters. This parameter is important because the compressor outlet temperature is needed to be lower than the threshold value in consideration of the cooling performance. The extracted air from the compressor is used for cooling high pressure turbine system. For example, if the intake air temperature is high, the compressor outlet temperature will also be high. At this time, the fuel supply flow is limited in order to keep the compressor outlet temperature not to be exceeded the threshold temperature, but it will also cause the power output decrease.

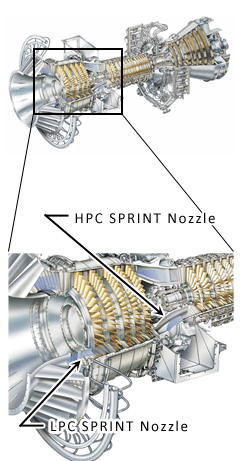

The SPRINT™ SYSTEM works to spray water at the inlets to the low-pressure compressor (LPC) and high-pressure compressor (HPC), which decreases the temperature at compressor outlet by depriving the heat of vaporization(evaporation).



In addition, the SPRINT™ SYSTEM enables to increase 12% power output at ISO condition when the amount of additional fuel is supplied and the temperature drops below the threshold value, or to increase 30% power output at ambient temperature of 32℃ at same condition.

Product features

LM6000PF performance

Simple cycle Power output at the generator terminal 43MW Efficiency at the generator terminal More than 41%
Combined cycle Power output at the generator terminal 56MW Efficiency at the generator terminal More than 54%
Cogeneration system Power output at the generator terminal 51MW Efficiency at the generator terminal More than 41%
Steam flow 61t/h Total thermal efficiency More than 83%



LM6000PF+ performance

Simple cycle Power output at the generator terminal 51MW Efficiency at the generator terminal More than 41%
Combined cycle Power output at the generator terminal 68MW Efficiency at the generator terminal More than 56%
Cogeneration system Power output at the generator terminal 50MW Efficiency at the generator terminal More than 40%
Steam flow 78t/h Total thermal efficiency More than 85%

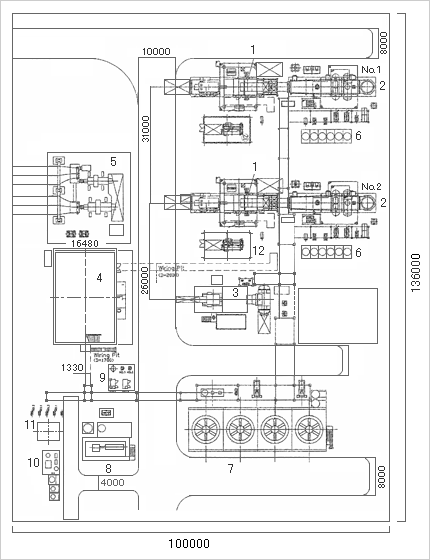

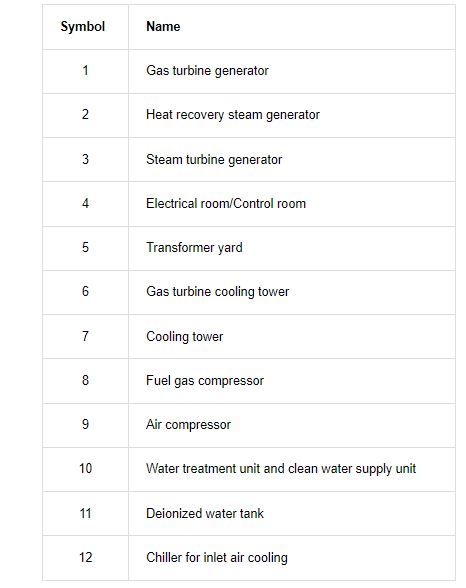

Standard LM6000 Layout Diagram/Combined-cycle (2 GT Units)
