Screw Decanter Centrifuge
HS-DP Type
A deep pool design ideal for organic sludge dehydration
An energy-saving, deep pool screw decanter centrifuge. Excellent for dewatering organic sludge.
- Economy
- 5
- Adaptability
- 4
- Specialty
- 4
- Dehydration capability
- 5
- AntiーWear
- 5
- Operation / Maintenance
- 4
- Total
- 27
Features
Energy-saving, deep pool design
The rotating bowl is designed with a deeper pool shape compared to our standard HS-L types. Its unique shape allows further reduction in the water content of organic sludges.

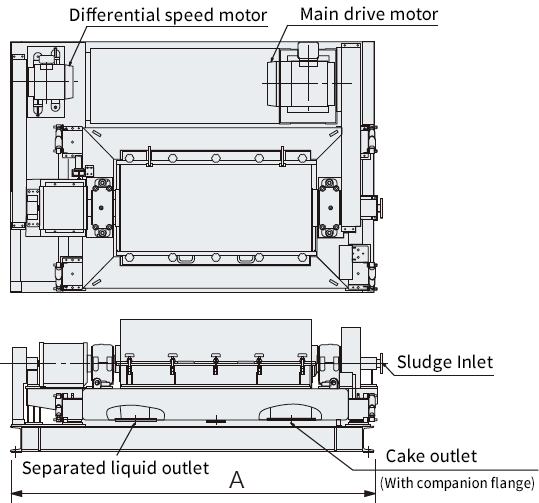

Dimensional specifications
Specifications
Type | Official Performance (m2/h) | Centrifugal efficiency(G) | Output(kW) | ||
---|---|---|---|---|---|
Main drive motor | Back drive motor | Lubricating Oil Device | |||
HS-40DP | 1.5−2.5 | 2000 | 3.7 | 1.5 | − |
HS-100DP | 3−4 | 2000 | 5.5 | 1.5 | − |
HS-120DP | 4−6 | 2000 | 7.5 | 1.5 | − |
HS-200DP | 3−5 | 2000 | 11 | 2.2 | − |
HS-300DP | 5−8 | 2000 | 11 | 3.7 | − |
HS-320DP | 7−11 | 2000 | 11 | 3.7 | − |
HS-340DP | 4−6 | 2000 | 11 | 3.7 | − |
HS-360DP | 6−10 | 2000 | 15 | 5.5 | − |
HS-380DP | 9−14 | 2000 | 18.5 | 5.5 | − |
HS-400DP | 6−8 | 2000 | 15 | 5.5 | − |
HS-500DP | 8−12 | 2000 | 18.5 | 5.5 | − |
HS-520DP | 11−17 | 2000 | 18.5 | 5.5 | − |
HS-600DP | 9−13 | 2000 | 22 | 5.5 | − |
HS-700DP | 13−19 | 2000 | 30 | 5.5 | − |
HS-720DP | 18−27 | 2000 | 30 | 5.5 | − |
HS-760DP | 15−23 | 2000 | 37 | 7.5 | 0.75 |
HS-800DP | 20−30 | 2000 | 55 | 11 | 0.75 |
Type | Weight (kg) | Outward Size (mm) | |||
---|---|---|---|---|---|
With common bed |
A | B | C1 | C2 | |
HS-40DP | ※720 | 1675 | 1320 | 573 | − |
HS-100DP | ※890 | 1865 | 1500 | 600 | − |
HS-120DP | ※1000 | 2075 | 1500 | 600 | − |
HS-200DP | 1750 | 2260 | 1600 | − | 930 |
HS-300DP | 1900 | 2460 | 1600 | − | 930 |
HS-320DP | 2100 | 2730 | 1600 | − | 930 |
HS-340DP | 2000 | 2580 | 1950 | − | 986 |
HS-360DP | 2200 | 2510 | 1950 | − | 986 |
HS-380DP | 2400 | 2810 | 1950 | − | 986 |
HS-400DP | 2600 | 2710 | 2000 | − | 1060 |
HS-500DP | 3000 | 2970 | 2000 | − | 1060 |
HS-520DP | 3300 | 3310 | 2000 | − | 1060 |
HS-600DP | 4500 | 3280 | 2300 | − | 1260 |
HS-700DP | 4900 | 3630 | 2300 | − | 1260 |
HS-720DP | 5500 | 4030 | 2300 | − | 1260 |
HS-760DP | 5700 | 4130 | 2380 | 1129 | 1300 |
HS-800DP | 11600 | 4785 | 3065 | 1390 | 1720 |
-
Note 1: The nominal capacity is the treatment volume based on the assumption of flocculation dehydration of human waste mixture containing activated sludge and coagulated sedimentation sludge (SS concentration=1.5-2.5%), using the standard nitrogen removal method.
The treatment capacity may vary depending on the properties of the slurry (e.g., SS concentration, viscosity, particle diameter, specific gravity), use of flocculants, and desired performance (water content rate of cake and SS recovery rate.)
Please inquire with IHI for assistance in your selection process. - Note 2: Installed power may vary depending on the processing conditions. Those marked with * indicate cases without a common bed.
