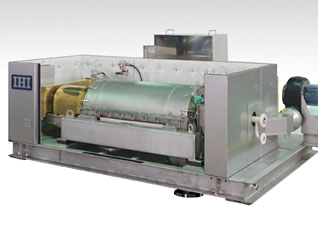

Screw Decanter Centrifuge
HS-L-HV Type
A pressure-resistant and airtight model for manufacturing processes
This pressure-resistant, airtight model is ideal for separation and dehydration in a variety of fields, including solvents, toxins, and other hazardous materials.
- Economy
- 3
- Adaptability
- 4
- Specialty
- 5
- Dehydration capability
- 4
- AntiーWear
- 4
- Operation / Maintenance
- 3
- Total
- 23
Features
A pressure-resistant and airtight screw decanter designed for manufacturing processes mainly in the petroleum and chemical industries
This screw decanter centrifuge features non-contact shaft seal to improve pressure resistance and airtightness. It can be applied to the treatment of hazardous materials such as solvents and toxins.
Key Features
- Non-contact shaft seal method
- The non-contact gas seal ensures that there is no power loss caused by the seal and no contamination will occur. The non-contact system also allows a longer service life. Furthermore, there is no need for flushing liquids or cooling and circulation devices needed for those liquids, which are otherwise required in mechanical seals and other contact seal systems.
- Simple and compact design
- The horizonal design orientation offers a greater degree of freedom when planning the plant equipment layout. A seal gas operation console is also a standard feature, so it can be operated by simply connecting the gas piping.
- A unique seal embedding structure
- Thanks to our original seal embedding structure, we have maintained the unit's total length on par with our standard models. With this, it can be operated by utilizing high-speed centrifugal force.
Dimensional specifications
Specifications
Type | Official Performance (m3/h)(1) |
Centrifugal efficiency (G) (MAX) |
Standard Design pressure |
Standard Design temperature |
---|---|---|---|---|
HS-206L-HV | 2 | 3000 | 0.1MPaG | 120℃ |
HS-256L-HV | 3 | 3000 | 0.1MPaG | 120℃ |
HS-366L-HV | 6 | 3000 | 0.1MPaG | 120℃ |
Type | Output (kW)(2) |
Outward Size (mm)(3) |
Weight (kg)(3) |
|||
---|---|---|---|---|---|---|
Main drive motor |
Back drive motor |
A | B | C | ||
HS-206L-HV | 5.5 | 2.2 | 1970 | 1250 | 580 | 800 |
HS-256L-HV | 7.5 | 3.7 | 2850 | 1600 | 1200 | 2000 |
HS-366L-HV | 37 | 11 | 3150 | 2200 | 1200 | 4400 |
- Note: The nominal capacity is provided only as a guide and may vary significantly depending on the condition of the liquids to be treated under your plan.
- Note 2: Installed power may vary significantly depending on treatment conditions.
- Note 3: Weight and outward sizes may vary depending on the specifications.
