SEPARATOR / DEHYDRATOR
Screw Decanter Centrifuge
HS-L Type
A versatile model with high treatment capacity
The standard model of our screw decanter centrifuges. Highly versatile, this type can be utilized in various fields.

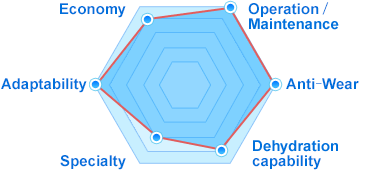

- Economy
- 4
- Adaptability
- 5
- Specialty
- 3
- Dehydration capability
- 4
- AntiーWear
- 5
- Operation / Maintenance
- 5
- Total
- 26
Features
Suitable for a wide range of needs with a lineup starting from mini decanters with treatment volume of less than 1m3/hr to large-capacity types capable of treating nearly 80m3/hr.
The HS-L series is the most versatile among our screw decanter centrifuges, ideal for use in a wide range of fields from wastewater treatment to manufacturing processes. We address the needs of our all customers with our extensive lineup that ranges from compact decanters that can fit on top of a desk to large-scale models with a rotating body that is more than 1 meter in diameter.
Dimensional specifications
Dimensions(HS-204L、HS-205L、HS-255L)
Dimensions(HS-324L over)
Specifications
Type | Official Performance m3/h |
Centrifugal efficiency (G) |
Outward Size (mm) |
|||
---|---|---|---|---|---|---|
Standard | Maximum | A | B | C | ||
MD-10 | 0.6〜0.9 | 2000 | 2000 | 1260 | 940 | 420 |
HS-204L | 1.0〜1.5 | 2000 | 3500 | 1545 | 1260 | 600 |
HS-205L | 1.5〜2.5 | 2000 | 3500 | 1675 | 1260 | 600 |
HS-255L | 2.5〜3.5 | 2000 | 3500 | 1870 | 1380 | 600 |
HS-324L | 3.0〜4.0 | 2000 | 3500 | 2200 | 1600 | 920 |
HS-325L | 4.0〜6.0 | 2000 | 3500 | 2400 | 1600 | 930 |
HS-364L | 3.0〜5.0 | 2000 | 3500 | 2400 | 1950 | 990 |
HS-365L | 5.0〜8.0 | 2000 | 3500 | 2630 | 1950 | 990 |
HS-366L | 8.0〜12.0 | 2000 | 3500 | 2940 | 1950 | 990 |
HS-404L | 4.0〜6.0 | 2000 | 3500 | 2640 | 2000 | 1060 |
HS-405L | 7.0〜10.0 | 2000 | 3500 | 2900 | 2000 | 1060 |
HS-406L | 10.0〜15.0 | 2000 | 3500 | 3240 | 2000 | 1060 |
HS-504L | 6.0〜10.0 | 2000 | 3500 | 3650 | 1970 | 1360 |
HS-505L | 10.0〜16.0 | 2000 | 3500 | 4000 | 1970 | 1360 |
HS-506L | 16.0〜23.0 | 2000 | 3500 | 4400 | 1970 | 1360 |
HS-554L | 8.0〜12.0 | 2000 | 3500 | 4000 | 2300 | 1360 |
HS-555L | 13.0〜19.0 | 2000 | 3500 | 4300 | 2300 | 1360 |
HS-556L | 19.0〜28.0 | 2000 | 3000 | 4800 | 2300 | 1360 |
HS-634L | 10.0〜15.0 | 2000 | 3000 | 3980 | 3000 | 1330 |
HS-635L | 17.0〜25.0 | 2000 | 3000 | 4390 | 3000 | 1330 |
HS-636L | 25.0〜37.0 | 2000 | 2600 | 4920 | 3000 | 1330 |
HS-704L | 13.0〜19.0 | 2000 | 2600 | 4430 | 3350 | 1480 |
HS-705L | 20.0〜31.0 | 2000 | 2600 | 4880 | 3350 | 1480 |
HS-706L | 31.0〜47.0 | 2000 | 2600 | 5470 | 3500 | 1480 |
HS-805L | 27.0〜40.0 | 2000 | 2600 | 5740 | 3500 | 1790 |
HS-806L | 40.0〜60.0 | 2000 | 2600 | 6420 | 3500 | 1790 |
HS-1005L | 42.0〜63.0 | 2000 | 2000 | 6800 | 4000 | 2200 |
Type | Weight (㎏) |
Output (kW) |
||
---|---|---|---|---|
Main drive motor | Back drive motor | Lubricating Oil Device | ||
MD-10 | 250 | 2.2 | ー | ー |
HS-204L | 560 | 3.7 | 1.5 | ー |
HS-205L | 600 | 3.7 | 1.5 | ー |
HS-255L | 900 | 5.5 | 1.5 | ー |
HS-324L | 1580 | 11 | 3.7 | ー |
HS-325L | 1730 | 15 | 3.7 | ー |
HS-364L | 2190 | 15 | 5.5 | ー |
HS-365L | 2380 | 22 | 5.5 | ー |
HS-366L | 2590 | 30 | 5.5 | ー |
HS-404L | 2800 | 22 | 5.5 | ー |
HS-405L | 3000 | 30 | 5.5 | ー |
HS-406L | 3350 | 30 | 5.5 | ー |
HS-504L | 4900 | 30 | 7.5 | ー |
HS-505L | 5400 | 45 | 7.5 | ー |
HS-506L | 6000 | 55 | 7.5 | ー |
HS-554L | 6200 | 45 | 11 | 0.75 |
HS-555L | 6700 | 55 | 11 | 0.75 |
HS-556L | 7300 | 55 | 11 | 0.75 |
HS-634L | 5850 | 55 | 15 | 0.75 |
HS-635L | 6500 | 75 | 15 | 0.75 |
HS-636L | 7200 | 90 | 15 | 0.75 |
HS-704L | 8100 | 75 | 18.5 | 0.75 |
HS-705L | 8900 | 90 | 18.5 | 0.75 |
HS-706L | 10500 | 110 | 18.5 | 0.75 |
HS-805L | 12900 | 110-132 | 22 | 0.75 |
HS-806L | 15100 | 132-160 | 22 | 0.75 |
HS-1005L | 20800 | 150-200 | 30-37 | 0.75 |
-
Note 1: The nominal capacity is the treatment volume based on the settling performance standards for standard slurry with SS concentration of 1.5 - 2.5%.
The treatment capacity may vary depending on the properties of the slurry (e.g., SS concentration, viscosity, particle diameter, specific gravity), use of flocculants, and desired performance (water content rate of cake and SS recovery rate.)
Furthermore, both the treatment volumes of solids (kg·DSS/h) and liquids (m3/h) should be considered when selecting the model type. - Note 2: Installed power may vary depending on the treatment conditions.
